Description

▶ Overview

    Tent System:

• Is a stable inflatable structure
• Is made of polyester fabric coated with PVC on both sides
• Helps to provide adequate support, medical treatment and hospitalization during crisis

▶ Features

• Easy to handle (Takes 3 to 60 min. to install depending upon the model type)
• Both for short-term and long-term use
• Spacious, can be heated & hygienic
• Quality material used for long life & requires min. maintenance
• Wide practical uses – garage/warehouse, dining hall, general headquarters etc.

▶ Specification

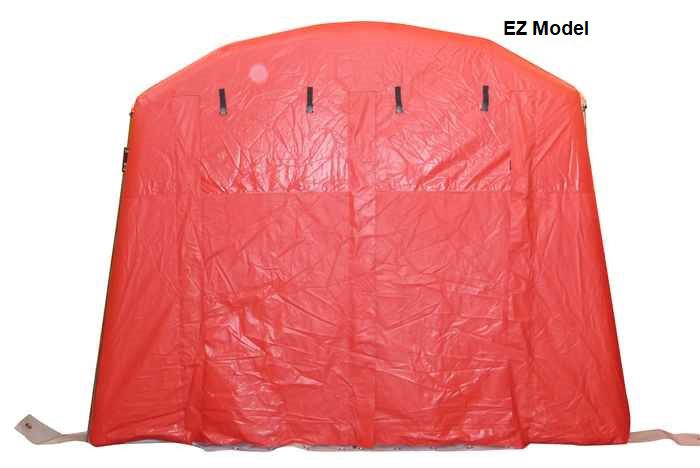

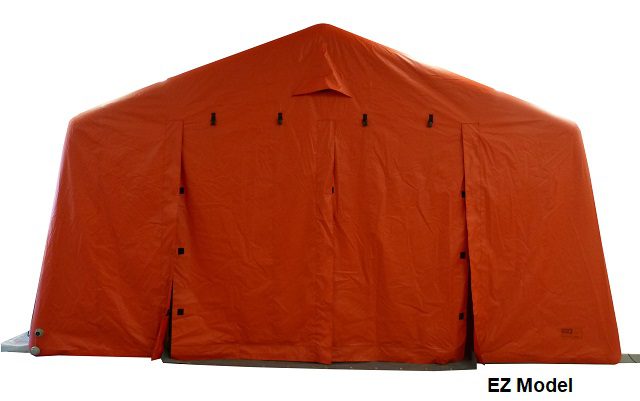

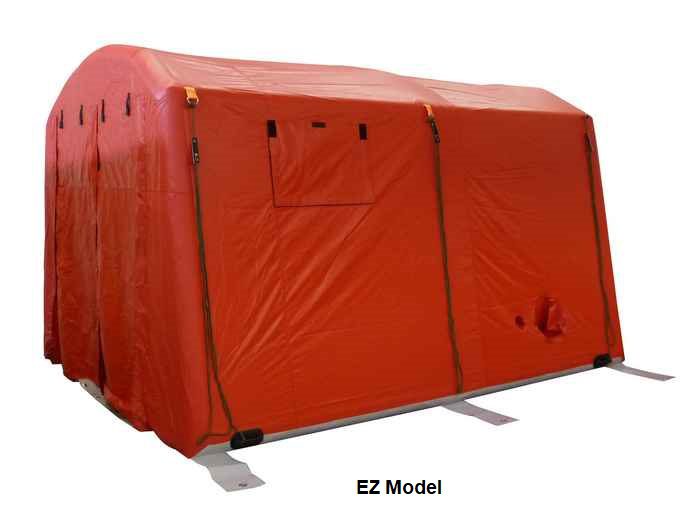

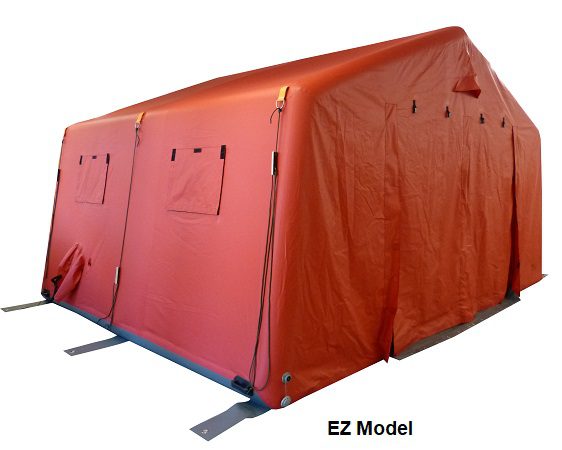

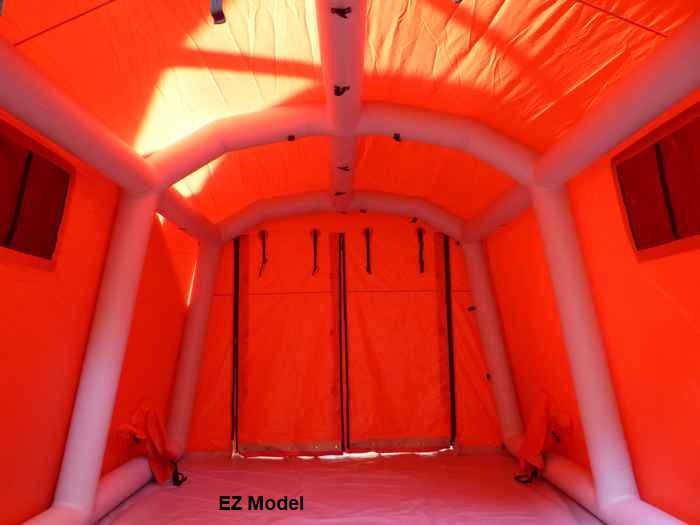

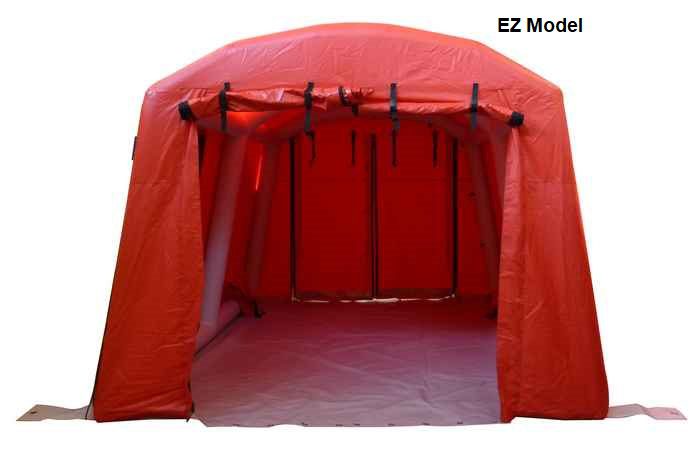

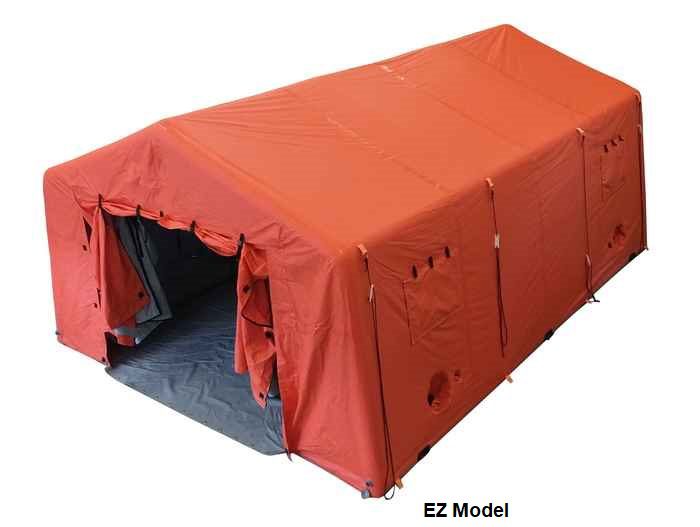

TECHNICAL DATA (EZ Models)

• Two-chamber tubular construction
• Tube diameter 200 mm
• Material: polyester fabric coated with PVC on both sides (from 400 g/m2 to 750 g/m2)
• Watertight floor connected with roof covering

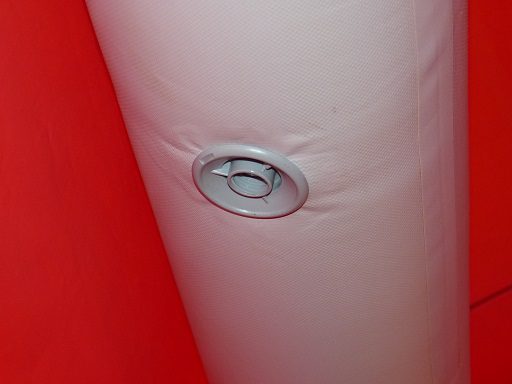

• Inflation: compressor or pressurized air bottle

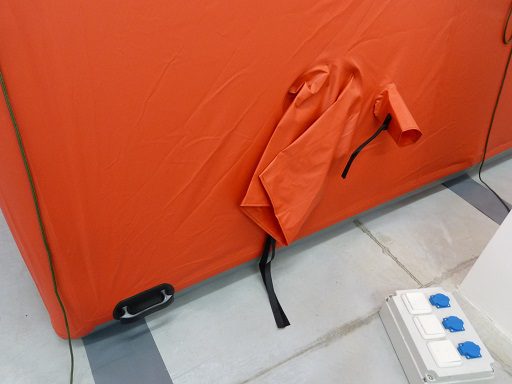

• Sleeves for air condition distribution (330 mm diameter)
• Sleeves for cables (100 mm diameter)
• Three-layer windows
• 2 entrance options:
  – wide entrance, opening/closing by zippers

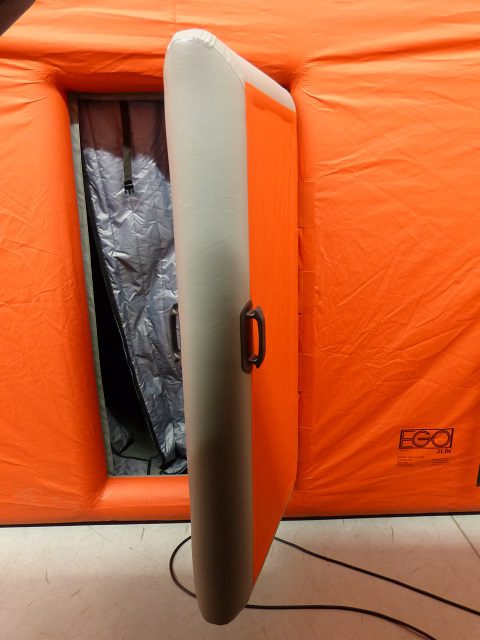

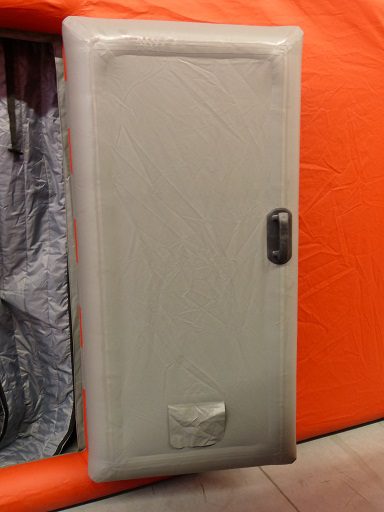

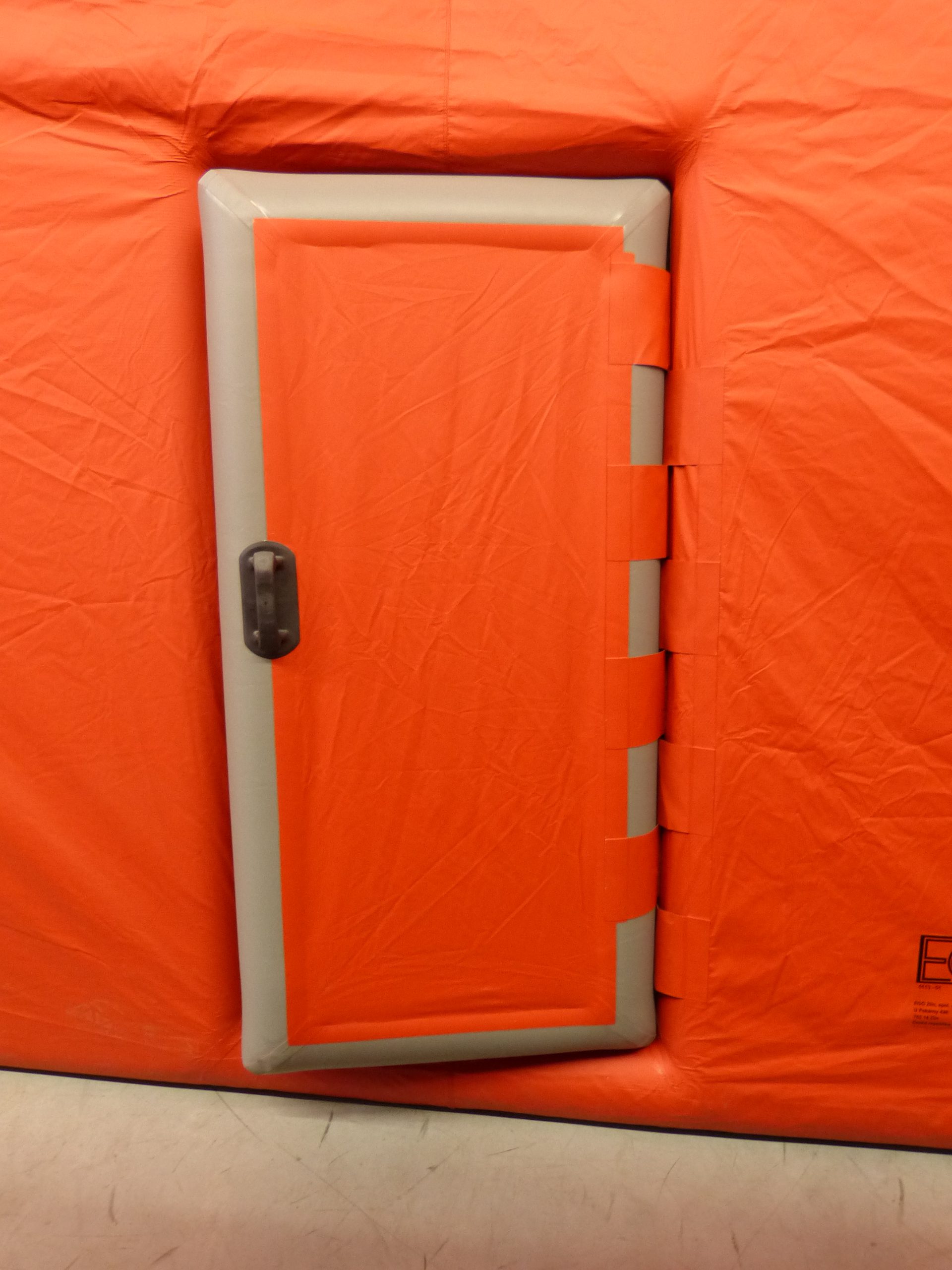

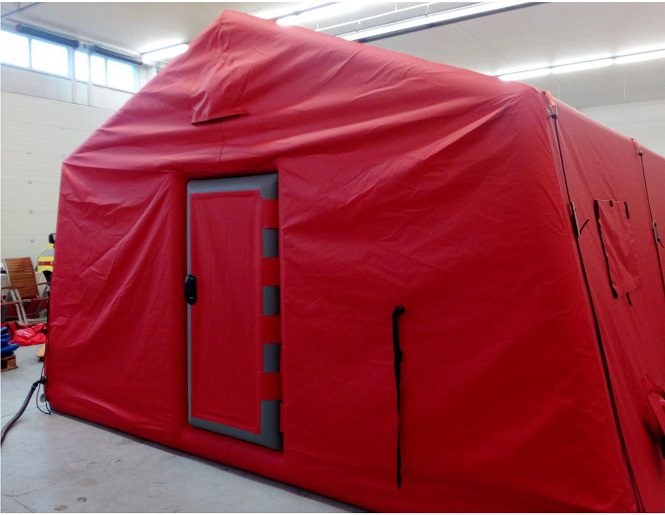

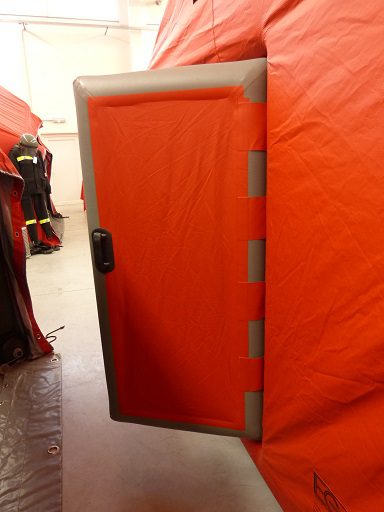

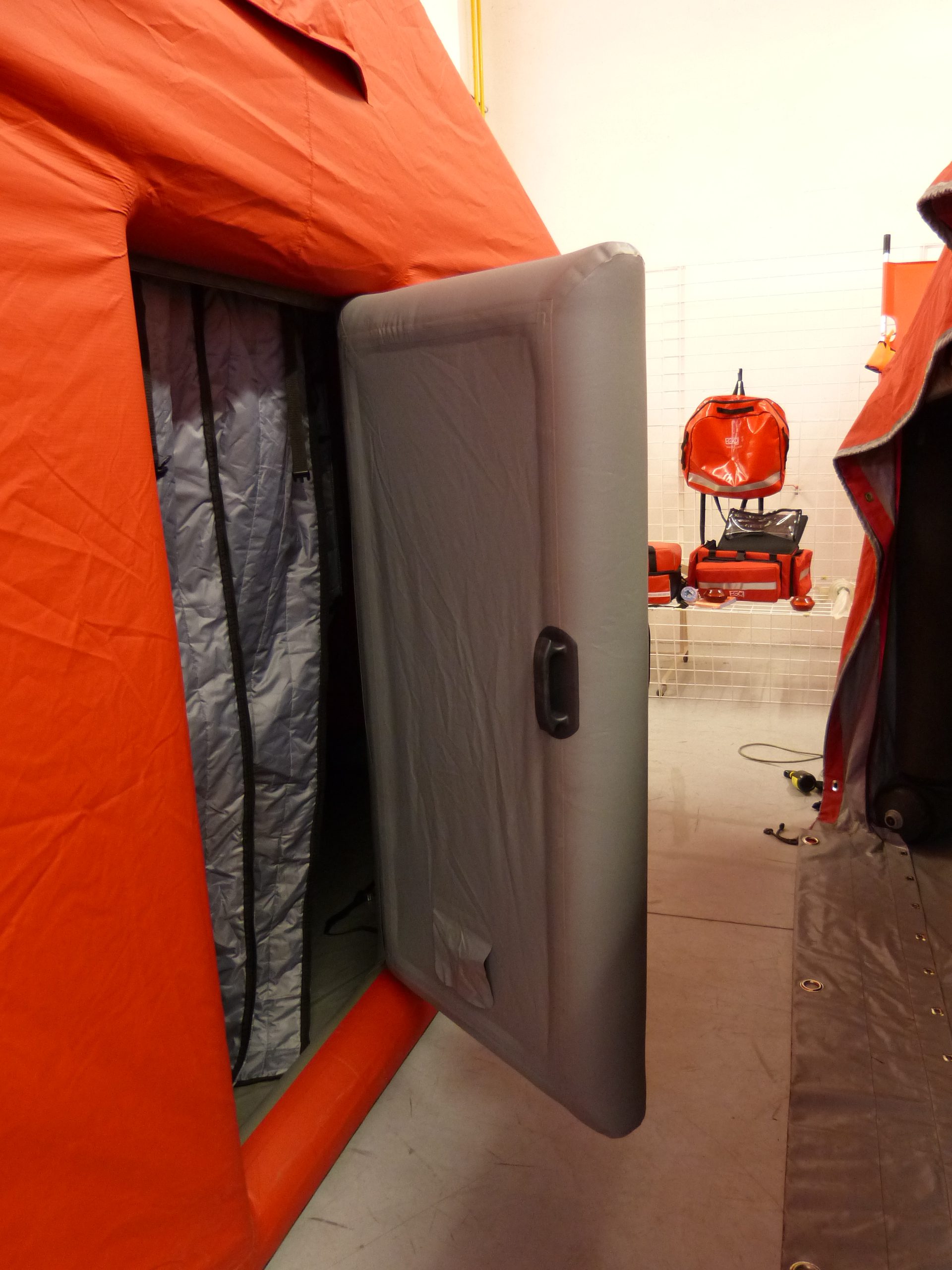

  – special tubular doors

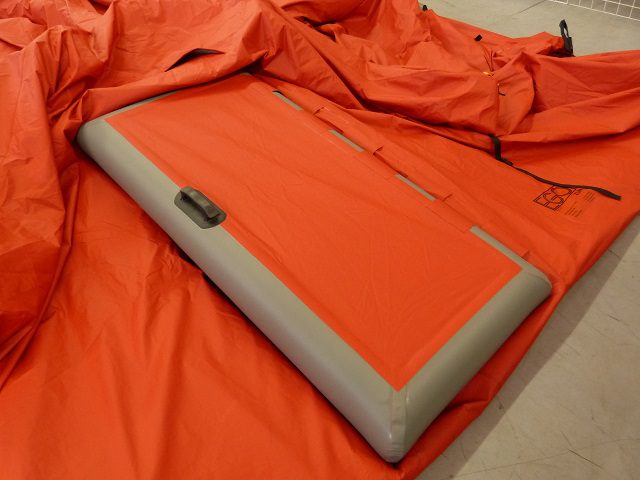

• Simple foldable threshold, preventing the penetration of water into the tent
• Anchoring system
• Colour: red, orange, khaki, blue (custom colors available)
• Models (Custom sizes available)

              EZ – 10 T/L   – 3.70m x3.10m x2.35m (LxWxH), 42 Kg, Inflation time: ca. 1 min

              EZ – 16S T/L – 3.85m x3.85m x2.85m (LxWxH), 70 Kg, Inflation time: ca. 1 min

              EZ – 18 T/L  – 4.00m x5.00m x2.85m (LxWxH), 75 Kg, Inflation time: ca. 1 min

              EZ – 24 T/L  – 6.00m x4.50m x2.80m (LxWxH), 98 Kg, Inflation time: ca. 2 min

TECHNICAL DATA (ES Models)

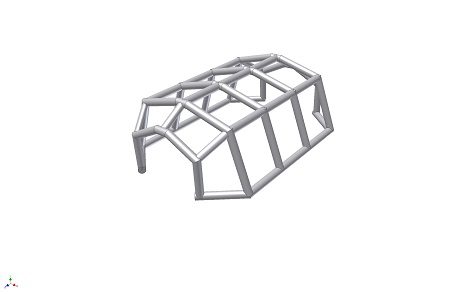

• Two-chamber tubular construction
• Tube diameter 300 mm
• Material: polyester fabric coated with PVC on both sides (from 400 g/m2 to 750 g/m2)
• Watertight floor connected with roof covering
• Inflation: compressor or pressurized air bottle
• Sleeves for air condition distribution (330 mm diameter)
• Sleeves for cables (100 mm diameter)
• Three-layer windows
• Tent wide entrance, opening/closing by zippers
• Simple foldable threshold, preventing the penetration of water into the tent
• Anchoring system
• Colour: red, orange, khaki, blue (custom colors available)
• Models (Custom sizes available)

               ES – 35 T/L     – 6.50m x6.00m x3.00m (LxWxH), 140 Kg, Inflation time: ca. 3 min

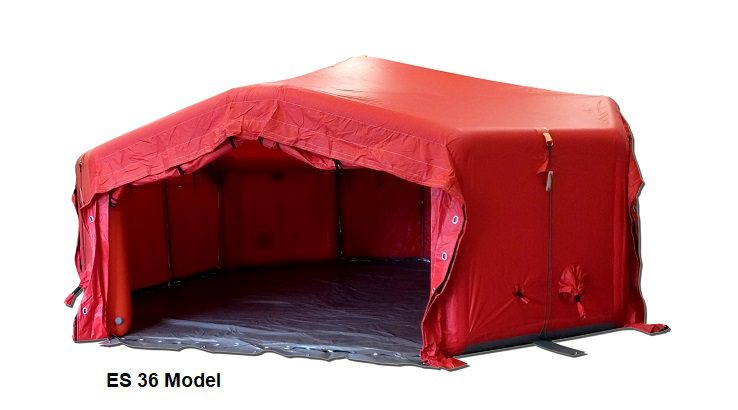

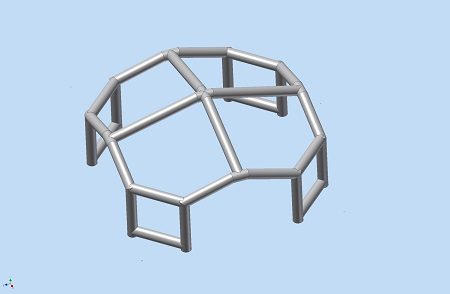

               ES – 36 TL/LS – 6.00m x6.00m x3.00m (LxWxH), 130 Kg, Inflation time: ca. 3 min

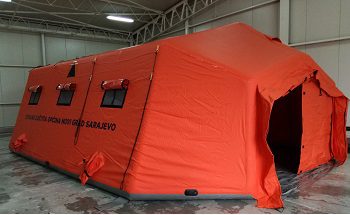

               ES – 48 T/L     – 8.25m x6.00m x3.00m (LxWxH), 160 Kg, Inflation time: ca. 4 min

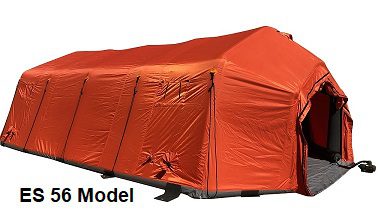

               ES – 56 T/L      -10.00m x6.00m x3.00m (LxWxH), 180 Kg, Inflation time: ca. 4 min

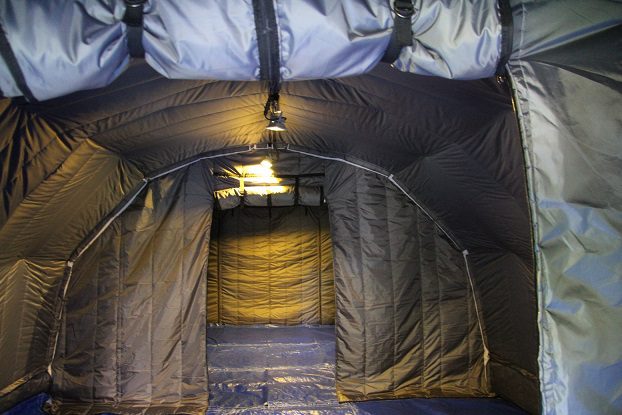

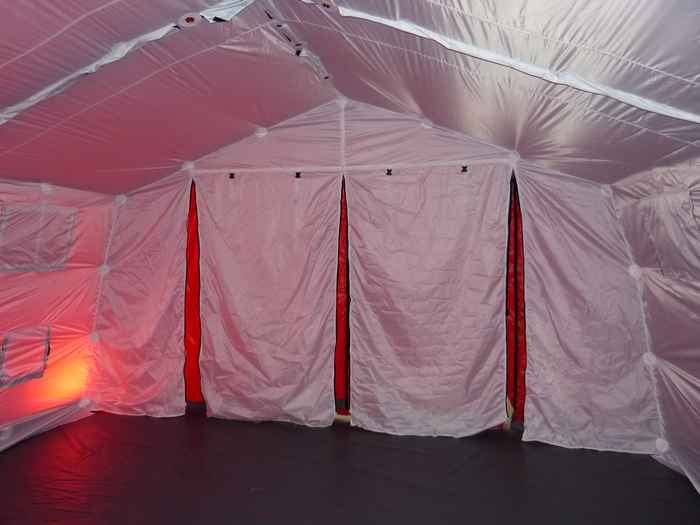

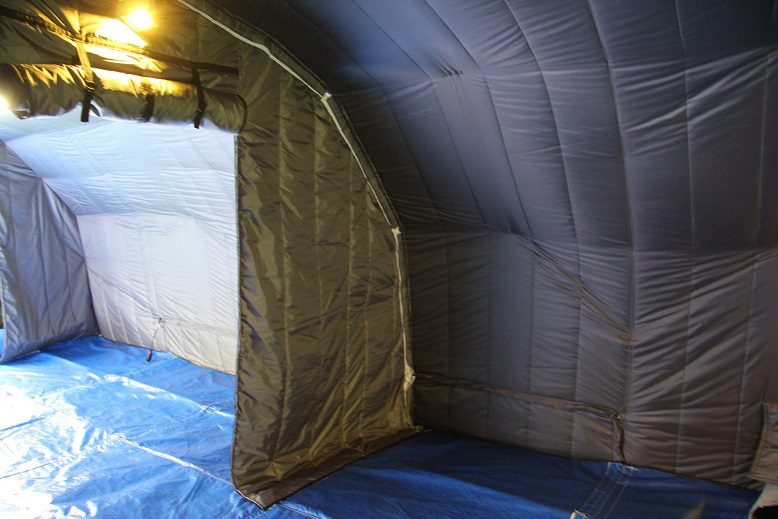

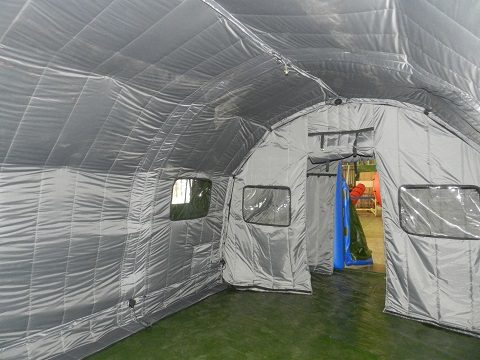

Optional: Hygienic inlays, Thermal insulation inlays, Mobile folding thermal-insulation floor & 2 Pc Wall to create cabins with windows and doors.

Delivery Timelines are about 3 months upon the confirmation of order. Custom colors and sizes are available.
